DESCRIPTION:

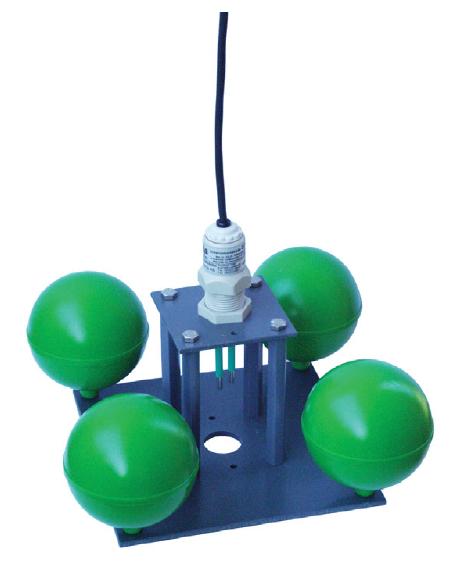

Floating electrodes for detection of a thin layer of non-conductive liquids with a lower specific gravity on top of conductive liquids with a higher specific gravity.
Floats made of PP, Plates and brackets made of PVC, conductive electrode with 2 electrode rods for signalling 1 alarm.
APPLICATION:
Floating electrodes are designed for use only in pits, reservoirs, pump shafts, separator plants for light liquids or similar areas.
It should be noted that floating electrodes can only be used to detect the presence of a layer of a light liquid which is not soluble in water and which is not conductive on a surface of water (or another conductive liquid which has a higher specific density than the respective light liquid) which is sufficiently calm to allow phase formation.
TECHNICAL FEATURES:
Design: 1 control electrode and 1 earth electrode.
Electrode rods: 45 x Ø 4 mm stainless steel 316 Ti covered with polyolefine.
Electrical connection: PVC cable potted in electrode head (other cable on request).
Length of connecting cable 2 meters (longer connecting cable on request)
Protection class: IP67
Material of electrode holder, stabilizer plate and brackets: PVC
Floats: 4 units made of PP, Ø 85 mm approx.
Minimum liquid level above the floor to ensure functioning of the floating electrode: 80 mm (with d=1 g/cm³).
Temperature range: +8 to +60 °C.
Pressure resistance: for pressureless applications only
Max. length of connecting cable between floating electrode and electrode relay: 1.000 meters.
