ML7984A4009 Honeywell

HONEYWELL Home Solutions

Electric actuator linear, force 710 N, travel 13 to 27 mm, 24 Vac / dc, control: 4 ... 20 mA / 2 ... 10 V / 135 Ohm / 3 pt. / on-off.

Stock 1 units

Delivery:

24-48h

438.50€

438.50€ Taxes not included

Calculate the shipping costs

Select country:

Select zip code:

The ML7984 is a self-contained, self-adjusting, motorized linkage that mounts directly onto V5011 two-way or V5013 three-way valves and provides up to 25 mm (1") of linear stem travel. For use with 2-10Vdc, 4-20mA, 135 ohm and modulating signals controllers.

Description: Direct-Coupled, Linear-Stoke, Valve Actuator.
Application Type: for valve models V5011/13, VGF21, and VGF22 up to 3 in.; V5045 w/ 272629A.
Force: 710 N.
Stroke: 13 to 25 mm.
Fail Safe Mode: Stays in place.
Control Signal: 2 to 10 Vdc.
Control Signal: 135 ohm potentiometer.
Control Signal: 4 to 20 mA.
Control Signal: SuperMod.
Supply Voltage: 28 Vdc / 24 Vac 50/60 Hz.
Number of Internal Auxiliary Switch: 0.
External Auxiliary Switches Available: 272630D (ordered apart).
Feedback Position: feedback available w/ 272630D; 2-10 Vdc (ordered apart).
Manual operation: None.
Mounting: Screws onto 1/4-28 UNF threaded valve stem.
Timing, Nominal Driving @ 60 Hz: 63 sec. at 19 mm stroke.

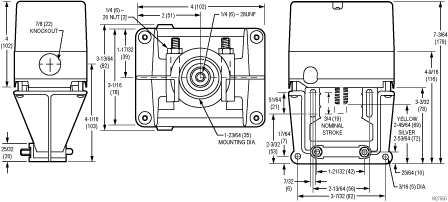

Dimensions: 173 mm high x 102 mm wide x 82 mm deep.
Weight: 1 kg.
Electrical Connections Screw terminals.
Working Temperature Range, Ambient: 0º C to 55º C.
Protection Rating: NEMA 3R, IP54 (mounted in vertical position).
Includes: Screw terminals.
Comments: Direct/Reverse Acting Switch.
